Torque Converter

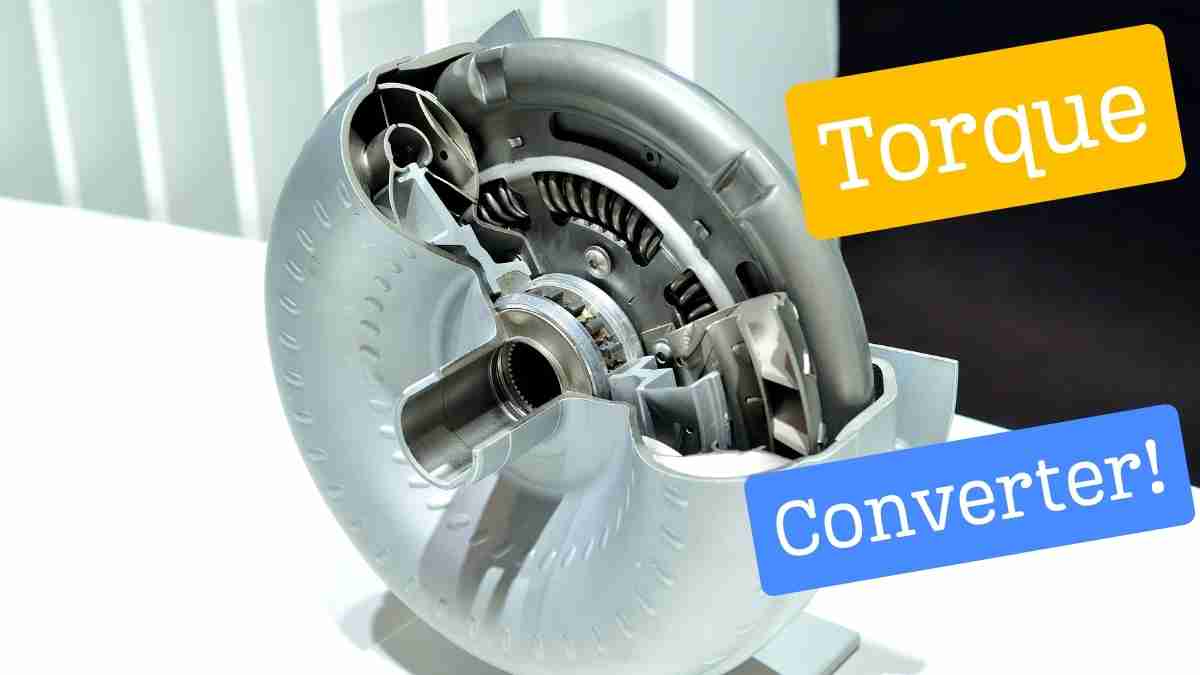

Understanding the Torque Converter Mechanism

As an integral part of an automotive transmission system, the torque converter plays a pivotal role in the performance and efficiency of a vehicle. This device acts as a fluid coupling, enabling the connection between the engine and the transmission to be seamless and adaptable to varying driving conditions. The concept of fluid coupling is fascinating, where fluid dynamics are harnessed to transmit power without direct mechanical contact.

The stall speed of a torque converter is an essential metric that reflects its efficiency in torque multiplication. It represents the maximum engine RPM at which the torque converter can hold the engine stationary while the transmission is in gear and the brakes are applied. This stall speed is not a fixed number but varies depending on the engine's torque characteristics and the specific design of the torque converter. When the engine RPM exceeds the stall speed, the torque converter transitions from a state of fluid coupling to one of torque multiplication, allowing the vehicle to accelerate.



The Role of Fluid Coupling in Automotive Transmissions

Understanding the hydraulic principles of fluid coupling in torque converters is fundamental to comprehending their operation. Fluid coupling involves the transfer of rotational energy from the engine to the transmission through a fluid medium, typically transmission fluid. This fluid is propelled by an impeller connected to the engine and transfers energy to a turbine connected to the transmission. The impeller and turbine do not touch; the fluid's movement between them facilitates power transfer.

The relationship between stall speed, slippage, and torque multiplication is critical in a torque converter's operation. Stall speed indicates the point at which the torque converter can no longer keep the engine in a state of stall and begins to transmit power to the transmission. Slippage occurs when there is a difference in rotational speed between the impeller and the turbine. While some slippage is necessary for smooth acceleration, excessive slippage can lead to inefficiencies and heat build-up, which negatively impacts torque multiplication and overall transmission performance.



Deciphering Stall Speed: What It Means for Your Vehicle

Stall speed's role in torque converter efficiency and performance is crucial to transmission dynamics. It directly impacts how the vehicle responds to throttle input and how effectively the engine's torque is utilized during initial acceleration. A torque converter with an appropriately set stall speed will allow the engine to operate within its optimal power band, maximizing efficiency and performance.

The impact of fluid coupling slippage on transmission dynamics is equally significant. While a certain degree of slippage is inherent and necessary for the torque converter to modulate power delivery, excessive slippage can lead to increased fuel consumption, reduced acceleration, and overheating, damaging the transmission over time. Therefore, maintaining the correct balance between stall speed and slippage is paramount for optimal vehicle operation.



The Impeller: A Critical Component in Torque Converters

The impeller's role in fluid coupling dictates the overall efficiency of the torque converter. As the engine's crankshaft drives the component, the impeller's design and condition are crucial for creating the necessary fluid flow to drive the turbine. Any inefficiency in the impeller's function can lead to inadequate torque multiplication and reduced vehicle performance.

Stall speed reflects the impeller-turbine interaction within the transmission system. It is the point at which the impeller has reached its maximum capacity to transfer energy to the turbine without causing the vehicle to move. The design of the impeller blades, their angle, and the speed at which they rotate all contribute to the stall speed characteristics of the torque converter.



How the Turbine Facilitates Power Transfer

The torque converter ensures torque multiplication during fluid coupling operation. The turbine, which receives the fluid thrown by the impeller, transforms this fluid motion back into rotational motion, which is then transmitted to the transmission. This process allows the vehicle to accelerate smoothly from a standstill without a mechanical clutch.

The turbine regulates transmission input via stall speed and slippage control. It is designed to work harmoniously with the impeller, but it also needs to manage the power it receives effectively. If the turbine cannot efficiently convert the fluid energy back into rotational energy, it will result in slippage and a loss of power transfer efficiency.



The Intricacies of Transmission Hydraulics

The torque converter enhances torque multiplication during the fluid coupling process. It does so by utilizing the principles of hydraulic force multiplication, where the design and operation of the impeller and turbine are optimized to increase the torque output over what the engine alone can provide.

Stall speed reflects the torque converter efficiency in the impeller-turbine transfer. It is a critical measure of how well the torque converter can handle the engine's power before transmitting it to the transmission. A well-designed torque converter will have a stall speed that allows the engine to reach a point of optimal power output before the vehicle begins to move.

Transmission hydraulics govern slippage, ensuring smooth torque converter operation. The hydraulic fluid within the torque converter must be maintained at the correct level and condition to facilitate efficient power transfer. If the fluid is old, contaminated, or at an incorrect level, it can cause increased slippage and reduced performance.



Slippage in Torque Converters: Causes and Consequences

Torque converter slippage reduces hydraulic efficiency, impacting torque multiplication. Slippage occurs when the turbine cannot keep up with the impeller's speed, causing a delay in power transfer. This inefficiency can lead to increased fuel consumption and a sensation of sluggishness during acceleration.

Excessive stall speed variance indicates impeller-turbine fluid coupling issues. If the stall speed is too high or too low compared to the manufacturer's specifications, it can signal problems with the torque converter. Such matters may include worn or damaged components, incorrect fluid levels, or other internal malfunctions.



The Science of Hydraulic Torque Multiplication

Hydraulic torque multiplication is enabled by the torque converter's fluid coupling design. The converter takes advantage of the properties of the transmission fluid to increase the torque transmitted from the engine to the transmission. This process is vital for pulling power during vehicle acceleration, especially under load.

Stall speed reflects the torque converter efficiency in power transmission. A torque converter that multiplies torque effectively will have a stall speed that aligns with the engine's peak torque output. This ensures that the vehicle can take full advantage of the engine's power when it is most needed.



Assessing the Performance of a Torque Converter

Assessing fluid coupling efficiency between the impeller and turbine during stall speed is crucial for determining the health of a torque converter. Technicians often measure stall speed during diagnostic procedures to ensure the torque converter operates within its designed parameters. Any deviation from the expected stall speed can indicate potential issues that must be addressed.

Evaluating slippage rates to ensure optimal torque multiplication in the transmission is another important aspect of torque converter assessment. By analyzing the difference in rotational speeds between the impeller and turbine, one can determine if the torque converter is slipping more than it should. Excessive slippage can lead to poor fuel economy, reduced acceleration, and increased wear on the transmission.



The Impact of Torque Converter Design on Vehicle Dynamics

Torque converter design is crucial for optimal fluid coupling performance. The geometry of the impeller and turbine blades, the size of the torque converter, and the type of fluid used all play a role in how well the torque converter will perform. A well-designed torque converter will provide smooth and efficient power transfer, enhancing the driving experience.

Stall speed and slippage affect transmission efficiency and response. A torque converter with the correct stall speed for the vehicle's engine will allow for quick and responsive acceleration. Conversely, a torque converter with excessive slippage can lead to a sluggish response and reduced vehicle performance.



Maintenance Tips for Prolonging Torque Converter Life

Ensuring proper fluid levels for optimal hydraulic torque multiplication is essential for the longevity of a torque converter. Regular checks and maintenance of the transmission fluid can prevent fluid coupling and torque multiplication issues. Keeping the fluid clean and at the correct level will help maintain the efficiency of the torque converter.

Regularly inspecting the impeller and turbine to mitigate transmission slippage is also important. Wear and tear on these components can lead to increased slippage and reduced performance. Routine inspections can help identify any potential issues early on, allowing for timely repairs or replacements.



Common Issues with Torque Converters and How to Troubleshoot Them

Identifying torque converter issues through stall speed anomalies and fluid coupling is critical to troubleshooting. If the vehicle exhibits unusual behavior during acceleration or a noticeable change in stall speed, it may indicate a problem with the torque converter. Technicians will often perform stall speed tests to diagnose such issues.

Troubleshooting transmission slippage via hydraulic integrity of the impeller and turbine involves examining the internal components of the torque converter. If slippage is detected, inspecting the impeller and turbine for damage or wear may be necessary. In some cases, replacing the torque converter may be the most effective solution.



Optimizing Stall Speed for Enhanced Vehicle Performance

Understanding the role of stall speed in torque multiplication is key to optimizing vehicle performance. The stall speed must match the engine's torque characteristics to ensure the vehicle can accelerate efficiently and effectively.

Analyzing the impact of fluid coupling slippage on transmission efficiency is also important. Minimizing slippage allows the torque converter to transfer more of the engine's power to the transmission, resulting in better acceleration and overall performance.



The Relationship Between Engine Speed and Torque Converter Function

The torque converter optimizes fluid coupling at varying engine speeds. It is designed to adapt to changes in engine RPM, ensuring that the power transfer remains efficient and responsive. This adaptability is crucial for maintaining vehicle performance across various driving conditions.

Stall speed reflects torque multiplication when the impeller exceeds turbine rotation. At stall speed, the engine produces maximum torque, and the torque converter is designed to multiply this torque to the greatest extent possible before the vehicle begins to move. This is a critical moment in the driving experience, as it determines how quickly and smoothly the car can accelerate from a standstill.



Improving Fuel Efficiency with the Right Torque Converter

Optimizing fluid coupling in torque converters enhances transmission efficiency and performance. By ensuring that the torque converter is working efficiently, less fuel is wasted, and the vehicle can achieve better fuel economy. This optimization also leads to improved acceleration and smoother shifts.

Balancing stall speed and slippage is crucial for torque multiplication optimization. The right balance will allow the engine to operate at its most efficient point, providing the best performance and fuel economy. This balance is achieved through careful design and tuning of the torque converter.



Torque Converter Lock-Up and Its Effect on Driving Experience

The torque converter lock-up reduces slippage, enhancing transmission efficiency at stall speed. The lock-up mechanism engages at a certain point in the acceleration process, creating a direct mechanical link between the engine and transmission. This reduces slippage to nearly zero, improving fuel efficiency and performance.

The lock-up mechanism engages, ensuring direct fluid coupling for optimal torque multiplication. When the lock-up clutch is engaged, it eliminates the fluid coupling's slippage, allowing for more efficient power transfer and a more connected driving experience.



The Evolution of Torque Converters in Modern Transmissions

Torque converters have evolved from simple fluid coupling devices to sophisticated components that optimize stall speed. Modern torque converters are engineered with precision to provide the best possible balance of performance, efficiency, and drivability.

Modern transmissions minimize slippage, enhancing torque multiplication and hydraulic efficiency. Advances in materials and design have allowed for the development of torque converters that exhibit minimal slippage, thus maximizing the power transmitted to the wheels.



Customizing Stall Speed for Racing Applications

Customizing stall speed optimizes torque converter efficiency in racing. In high-performance applications, the stall speed can be tailored to match the specific power band of the engine, allowing for maximum acceleration off the line. This customization is critical for competitive racing, where every fraction of a second counts.

Balancing fluid coupling slippage minimizes transmission losses, enhancing torque multiplication. Racing torque converters are designed to reduce slippage as much as possible, ensuring maximum power is delivered to the drivetrain. This balance is achieved through specialized materials and designs that can withstand the rigors of racing.



Analyzing the Effects of Torque Converter Modifications

Torque converter enhancements alter stall speed and torque multiplication. Modifications such as changing the angle of the impeller blades or adjusting the torque converter size can significantly impact how the vehicle accelerates and performs.

Modifications impact fluid coupling, affecting transmission efficiency and slippage. Any changes to the torque converter must be carefully considered, as they can affect the delicate balance of the fluid coupling process. Ensuring that any modifications are compatible with the rest of the transmission system is important.



The Role of Computer Control in Torque Converter Operation

Computer control optimizes torque multiplication within fluid coupling mechanisms. Modern vehicles are equipped with sophisticated control systems that can adjust the operation of the torque converter in real time based on driving conditions and driver inputs. This allows for precise control over the torque multiplication and slippage.

Enhanced transmission efficiency is achieved by regulating stall speed and minimizing slippage. The computer control system can adjust the operation of the torque converter to maintain the optimal stall speed and reduce slippage, ensuring that the vehicle operates at peak efficiency.



Understanding Torque Converter Warranty and Replacement

Understanding the impact of stall speed on torque converter warranties is important for vehicle owners. A torque converter operating outside its designed stall speed can lead to premature wear and potential failure. It is important to know the warranty terms and conditions related to the torque converter and ensure that any modifications do not void the warranty.

Hydraulic slippage in fluid coupling affects torque multiplication and lifespan. Excessive slippage can lead to increased heat and wear on the torque converter, potentially resulting in the need for replacement. Maintaining the torque converter properly is important to prevent slippage-related issues and prolong its lifespan.



Exploring the Limits of Torque Multiplication

Understanding the role of fluid coupling in torque converter efficiency is essential for pushing the limits of torque multiplication. The efficiency of the fluid coupling process directly affects how much torque can be multiplied and transmitted to the transmission.

Examining stall speed as a critical factor in transmission performance is also important. The stall speed determines how quickly the vehicle can respond to throttle input and how effectively the engine's power is utilized. Pushing the limits of torque multiplication requires careful consideration of the stall speed and its impact on vehicle performance.



Innovations in Torque Converter Technology

Advancements in fluid coupling enhance torque multiplication in modern transmissions. Technological innovations have improved torque converters' materials, design, and control, allowing for better performance and efficiency.

Innovative impeller and turbine designs reduce slippage, optimizing stall speed. By optimizing the design of the impeller and turbine, manufacturers can reduce slippage and improve the efficiency of the torque multiplication process. This results in better acceleration and fuel economy.



The Future of Fluid Coupling in Hybrid and Electric Vehicles

Fluid coupling evolution in EVs optimizes torque converter efficiency. As the automotive industry moves towards hybrid and electric vehicles, the role of the torque converter is evolving. In these applications, the torque converter must be optimized for efficiency and compatibility with electric drivetrains.

Hybrid transmission designs balance stall speed and slippage reduction. In hybrid vehicles, the torque converter must work seamlessly with the internal combustion engine and the electric motor. This requires a careful balance of stall speed and slippage to ensure smooth and efficient power transfer.



Diagnosing Torque Converter Problems with Diagnostic Equipment

A key diagnostic procedure is assessing fluid coupling integrity within torque converters via hydraulic pressure tests. By measuring the hydraulic pressure within the torque converter, technicians can determine if there are any issues with the fluid coupling process.

Another important diagnostic step is evaluating stall speed discrepancies to identify torque multiplication and slippage issues. If the stall speed is not within the expected range, it can indicate problems with the torque multiplication process or excessive slippage. This information can help guide the troubleshooting process and ensure the torque converter operates correctly.
